Second Opinion (an AI-powered real time radiologic detection aid for dentists) is an integration application that links from Mediasuite.

Check Out the Second Opinion website link & training video, found at the end of this article

Launch "PearlOnDemand"

"PearlOnDemand" is launched via the Patient Records tabs in D4W using an x-ray icon link

"PearlOnDemand" only uploads images taken on the day for the patient in view

1. In D4W:

1. Go to > Patient Records (2D & 3D Charting, Perio, Treatment Plan or Treatment tabs)

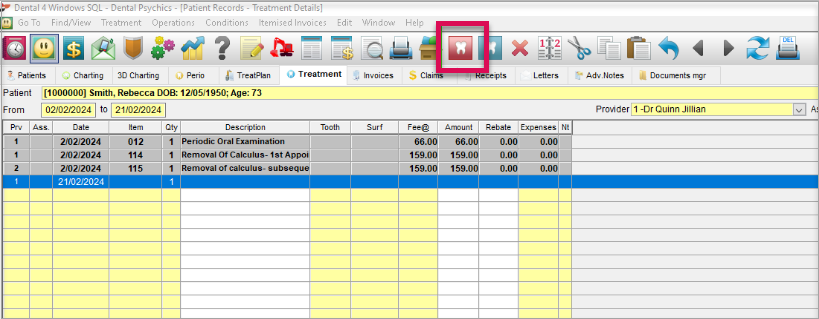

2. Click Icon to start Centaur Mediasuite


2. In Centaur Mediasuite:

1. Capture images as per usual process




3. Back In D4W:

1. Click Icon to start Pearl on Demand

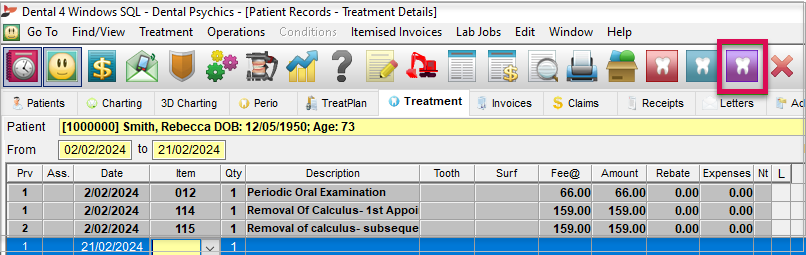

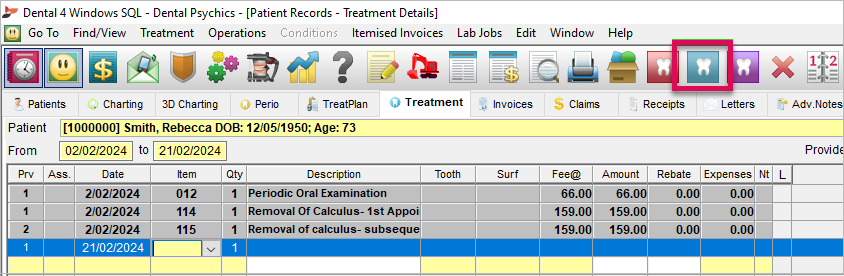

   Note: If you only 1 x-ray system linked in D4W before the PearlOnDemand setup, the new icon will be blue; if not, it will be the Purple icon

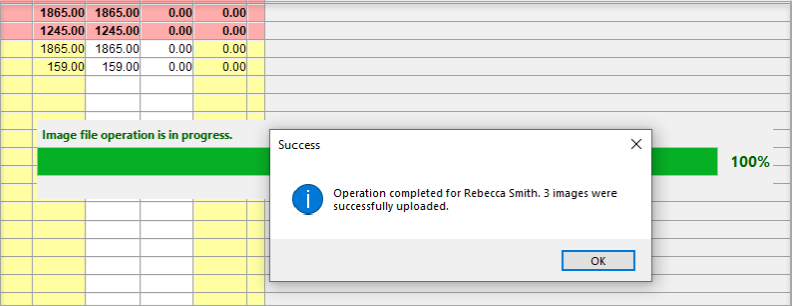

2. A progress bar will inform user of the progress of image upload

3. Once completed, the following message will appear



1. In Second Opinion:

1. The images and the detections will be available in Second Opinion within a few minutes

Second Opinion training video

Second Opinion website
