Measurement Descriptions in Dental4Windows

Perio measurement explanation and recording perio measurements.

Perio Measurement Explanation

Recession (FGM): Distance from the CEJ of the tooth, to the beginning of the gum

Muco-Gingival Junction: Distance from the Recession to the end of the attached gingiva


Pocket Depth: Distance from the Recession to the bottom of the periodontal pocket


CAL (Clinical Attachment Loss): Automatically calculated depending on what is entered in Recession and Pocket measurements

Furcation: For teeth that have more than one root, indicates the amount of bone loss in between the roots (furca)


Mobility: How loose a tooth is


Bleeding: Amount of bleeding on probing


Suppuration: Denotes the presence of infection (pus)


Plaque: Plaque present


Calculus: Calculus present

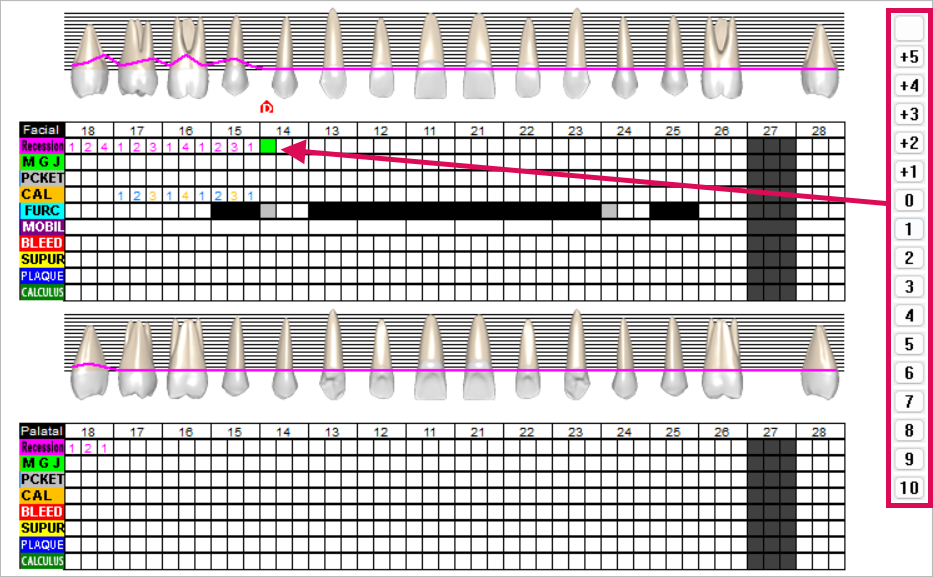

Recording Perio Measurements

The Perio measurements can either be entered by selecting the corresponding measurement on the right-hand side of the chart, or by the use of the keyboard. If a tooth is missing in 2D/3D charting it may not always show up in Perio Charting as 2D/3D charting do not constantly sync.

1. Go to Patient Details > Perio tab
2. Select the relevant chart from the Date drop list or create a new chart (See link below for further instructions)

3. Select the Jaw: Upper / Lower
4. Click in the field to enter a measurement (green box will appear)
5. Click the relevant measurement on the right of screen

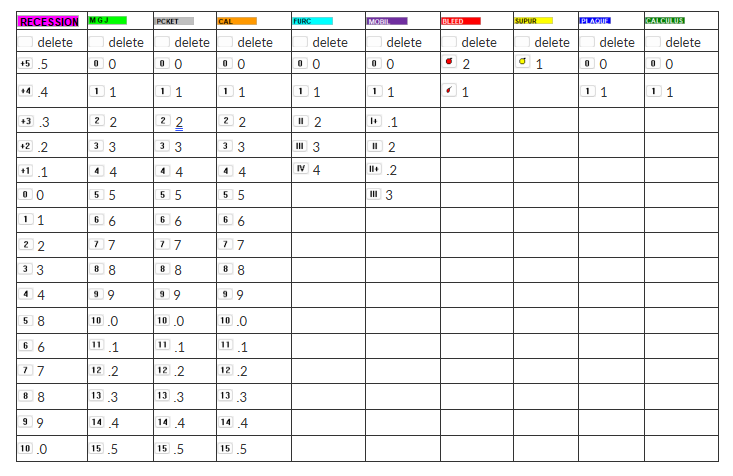

6. Press the relevant number / symbol on the keyboard


Create a New Perio Chart
