HICAPS Processing Claims
Process Single Patient Claim
The below instructions assume HICAPS is setup to claim via D4Web, the correct patient is in view and items are already entered in Treatment page, ready to process the claim.
Click the navigation menu > Patients > Treatment page
Itemised Invoices toolbar > New Invoice Only / F2 key / Click New Invoice icon

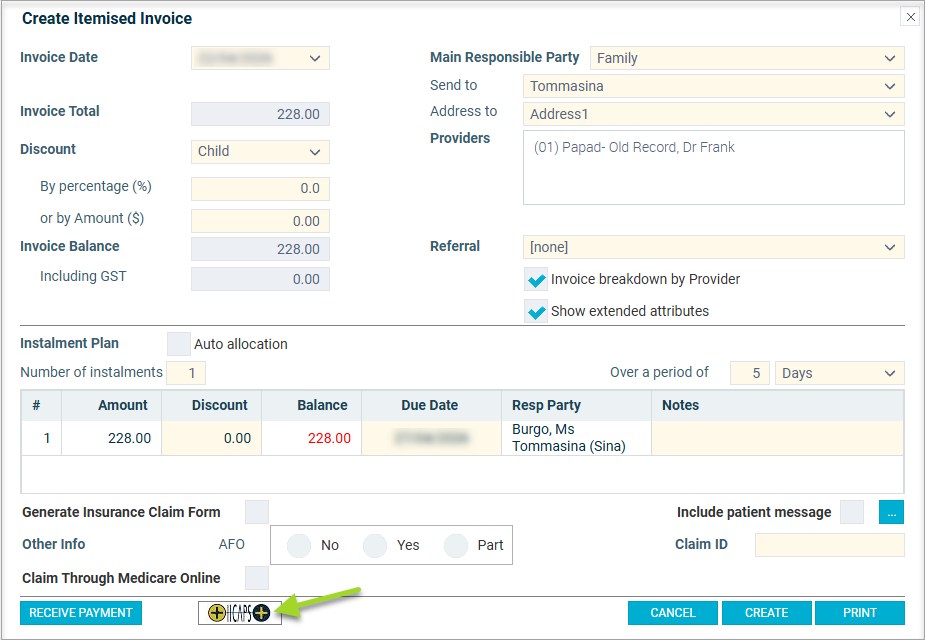

Create Itemised Invoice:
Click HICAPS

Check the details of the claim are correct. Its possible to deselect items to exclude from the claim or Cancel to start again.
Click OK to proceed with the claim

Click Yes when ready to process the claim, i.e. the patient card is in hand, ready to swipe on the terminal
When prompted, swipe the patients' insurance card
Once the claim is processed, the gap will appear onscreen
Click OK

Depending on settings, the claim will print to the terminal or printer

Within the Create Itemised Invoice window:
Discount: Enter an amount to discount from the gap amount
RECEIVE PAYMENT: Click to enter the gap payment
EXIT: Click to exit
SAVE: Click to save and close, select this option if receipts printed from terminal
PRINT: Click to print a copy from D4Web
Process Family Claim
Un-invoiced Treatment refers to items not created into an invoice
For items that have already been created into an invoice, see 'HICAPS: Process Claim on Invoiced Treatment' instructions below
When a family claim is processed, all the patients involved in the claim will appear in one invoice.
Prerequisites for family claiming:
- HICAPS Terminal is Connected to D4Web
- Accounts are NOT automatically broken down into separate patients
- Patients must be linked as a family in D4Web
- Family members must be on the same health fund card
- Treatment must be from the same Provider
- Providers must have their Provider ID entered to process claims
The below instructions assume the correct family is in view and items are already entered in Treatment page, ready to process the claim.
Click the navigation menu > Patients > Treatment page
Itemised Invoices toolbar > New Invoice Only / Press F2 key / Click New Invoice icon
Click HICAPS

Check the details, Its possible to deselect items to exclude from the claim or Cancel to start again.
Click OK

Click Yes when ready to process the claim, i.e. the patient card is in hand, ready to swipe on the terminal
When prompted, swipe the patients' insurance card
After the claim is processed, the gap message will appear onscreen
Click OK

![]()
- Depending on settings, the claim will print to the terminal or printer

Within the Create Itemised Invoice window:
Discount: Enter an amount to discount from the gap amount
RECEIVE PAYMENT: Click to enter the gap payment
EXIT: Click to exit
SAVE: Click to save and close, select this option if receipts printed from terminal
PRINT: Click to print a copy from D4Web
Process Claim on already Invoiced Treatment
Invoiced Treatment refers to items already created into an invoice - showing as red in the Treatment tab.
If treatment is not yet invoiced, see 'Process Family Claim' or 'Process Single Patient Claim' instructions above
Patients linked as a family, with the same health fund card and treated by the same provider can be claimed via HICAPS in the one transaction, saving time and reducing the amount of paper used per claim.
- Click the navigation menu > Patients > Invoices page
- Highlight the relevant Invoice
- Invoices toolbar > HICAPS Claim
- Click OK

- Click Yes when ready to process the claim
- When prompted, swipe the patients' insurance card
- After the claim is processed, the gap message will appear onscreen
- Click OK

Once the claim is processed, the following options are available:
Against the relevant invoice, enter a Discount
Select the relevant invoice > Click Print icon to print the gap amount
Go to Receipts page to process the gap amount
Process EFTPOS electronic Payment
When the HICAPS terminal is linked with D4Web, EFTPOS payments can be processed in addition to insurance claims for gap payments or as a stand alone payment terminal.
- Click the navigation menu > Patients > Receipts page..
Add new receipt
Amount: Enter the amount
Payment Type: Select EFTPOS ePayment
EFTPOS Payment: Click HICAPS

- Are you ready to use HICAPS?
Click YES when ready to process - have the card ready
Swipe / Insert / Tap the patients card
If the payment was successful, click OK

If the payment was unsuccessful, click OK and select another Payment Type
Click Create / Print to finalise the payment

HICAPS has removed the ability to send user entered card details in an EFTPOS Sale transaction.
The 'Enter Card Details" option is no longer available within D4Web receipt Window.
Manual Credit Card entries can be completed directly via the terminal.
HICAPS Delete / Reverse Claims
Delete (reverse) a Claim

A claim can only be reversed once the associated receipt is removed/reversed.
Click the navigation menu > Patients > Claims page
Highlight the Claim to reverse
Claim toolbar > Reverse Claim

If security is setup, enter the Reason
Click Reverse
Follow the prompts of the claiming system

To see reversed details from the patients file, place a tick in Show reversed records
Reverse a claim done on ANOTHER day
Reverse a claim done on ANOTHER day (not today)
- Click the navigation menu > Receipts page > Find the patient

- Select the HICAPS e-payment that you want to reverse
- Receipts toolbar > Reverse Receipt.
- The record will appear on screen
- Click REVERSE
- The permission username/password may appear
- Complete and click OK
- Due to the transaction being done more than 1 day ago, the cancel timeout period message will appear

- Click YES to proceed anyway, the receipt of the E-PAYMENT will be reversed.
- Click YES, the receipt of the E-PAYMENT will be reversed.
- Now go into the Claims page and REVERSE the associated Claim. Use ' Delete (reverse) a Claim' instructions above
*IMPORTANT: Call HICAPS HELP on 1300 650 852 and be sure that that CLAIM / E-payment has truly already been reversed from their system. (you will need the RRN of that claim)Store and Forward / Invoice not Paid by Insurance
The Store and Forward (SAF) transactions are claims that are stored in the HICAPS host when the Health Fund host is unavailable due to various reasons. When the Health Fund host becomes available, the stored transaction will be sent to the Health Fund for processing.
When D4Web receives a Transaction Return Code of 10 for Store and Forward claim from the HICAPS terminal, D4Web will treat this as a successful claim, though the HICAPS receipt will differ slightly:
GAP column is removed from the claim form.
SAF Declaration should be printed on the Provider copy
Any Store and Forward claims transaction that need to be reversed have to be done from the Claims tab. The reason for this is because there is no benefit paid for this type of claim.
HICAPS - Worksafe (Vic only)
D4Web users in Victoria have the opportunity to submit HICAPS Claims for the Worksafe Health Fund.
The Worksafe Health Fund differs from other HICAPS Health Funds:
Transactions are not assessed immediately and no benefit is returned at the time of processing the claim.
Claims are assessed as a batch at a later time, and payments are sent to the Provider accordingly.
Worksafe does not issue a card to its members. Each patient is issued with a Claim Number that is used in place of a card number when sending claims.
The Claim number is 19 digits and is comprised of:
Create an Insurance Fund/Plan
- Create an Insurance Fund and Plan for Worksafe with the following details:
- Name: Victoria WorkSafe
- Abbreviation: VWA
- E-System: Select HICAPS from drop list
- Card No Prefix: 90360115
- Limit of items per claim: 24
- Place a tick in the Worksafe checkbox

- Add a Plan to above:
- Plan Code: VWA
- Plan Name: VWA
- E-System: Select HICAPS from drop list

Add WorkSafe to a Patient's Record
- Enter the Patient's Claim number in the Member ID field
- Enter 01 in the Series field

Send WorkSafe Claim via Hicaps terminal
All actions (Charting, Treatment Plan, Treatment) are the same as per the usual treatment procedures.
- Click the navigation menu > Patients > Treatment page
- Itemised Invoices toolbar > New Invoice Only (or press F2)
- Click Hicaps
- Check items selected are correct and click OK
- The Claim will now be submitted via the Hicaps terminal
NOTE: This claim has not been paid, it is submitted. The method of payment from WorkSafe Victoria to you will not change.Receive Payment from WorkSafe
Click the navigation menu > Patients > Receipts page
Receipts toolbar > New Receipt
Enter Amount and the usual Payment Type
Reverse WorkSafe Claim
WorkSafe claims can only be reversed on the same day it was submitted.
Click the navigation menu > Patients > Claims page
Select the Claim to be reversed
Claims toolbar > Reverse Claim
